Tutorial: Worked Examples

This tutorial walks through two complete RECOVAR analyses on paper datasets with real output plots.

• EMPIAR-10076 (50S ribosome): pipeline, analyze, identify an outlier cluster, extract a clean subset, re-run
• EMPIAR-10180 (spliceosome): pipeline with filtered particles, analyze, conformational density estimation, trajectory computation

Overview

A typical RECOVAR workflow:

1. recovar pipeline — compute the mean reconstruction, covariance, eigenvolumes, and embed particles into a latent space.
2. recovar analyze — k-means clustering, UMAP embedding, representative volumes, trajectories.
3. Inspect & iterate — examine plots, extract particle subsets, estimate conformational density, compute trajectories.

CLI or GUI — your choice

This tutorial uses the command line, which is reproducible and scriptable. RECOVAR also provides a web GUI (recovar gui) that lets you do all of this through a browser — launch jobs, explore the latent space interactively, click to generate volumes, and view 3D reconstructions. See the GUI Guide for details.

Prerequisites

• A particle stack (.star, .cs, or .mrcs)
• Poses (auto-extracted from .star/.cs, or a .pkl file)
• CTF parameters (auto-extracted from .star/.cs, or a .pkl file)
• A solvent mask (.mrc file, or sphere / from_halfmaps)
• A GPU (NVIDIA, 12+ GB VRAM recommended)

---

EMPIAR-10076: 50S Ribosomal Subunit

Dataset: Bacterial large ribosomal subunit assembly intermediates (131,899 particles, 256 x 256 px).

• Reference: Davis et al. (2016) Structure 24(4):549-557
• Heterogeneity: Multiple assembly states with varying rRNA/protein occupancy

Step 1: Run the pipeline

recovar pipeline particles.256.mrcs \
    --poses poses.pkl --ctf ctf.pkl \
    --mask recovar_masks/mask_10076.mrc \
    -o output

Flag	Purpose
--poses, --ctf	Pre-extracted orientation and CTF parameters
--mask	Solvent mask to exclude solvent regions
-o output	Output directory

Using .star or .cs files

RECOVAR auto-extracts poses and CTF from RELION .star or cryoSPARC .cs files:

recovar pipeline particles.star -o output --mask mask.mrc

GUI alternative

In the GUI, click New Job , select Pipeline, browse to your particle file, select a mask, and click Submit. The GUI auto-detects the file format and validates inputs before submission. See GUI: Submitting Jobs.

Key pipeline outputs

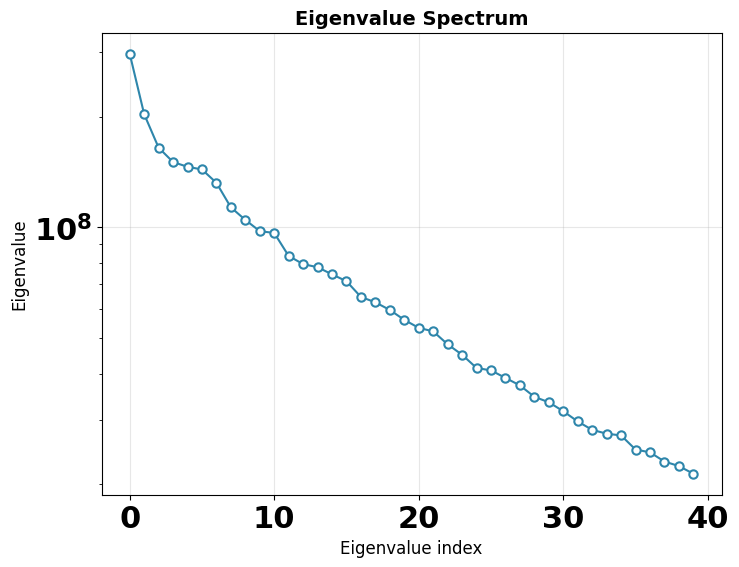

Eigenvalue spectrum — the variance captured by each principal component. A steep drop-off means most heterogeneity is captured in the first few components. The gap between signal eigenvalues and the noise floor indicates the intrinsic dimensionality of the conformational landscape.

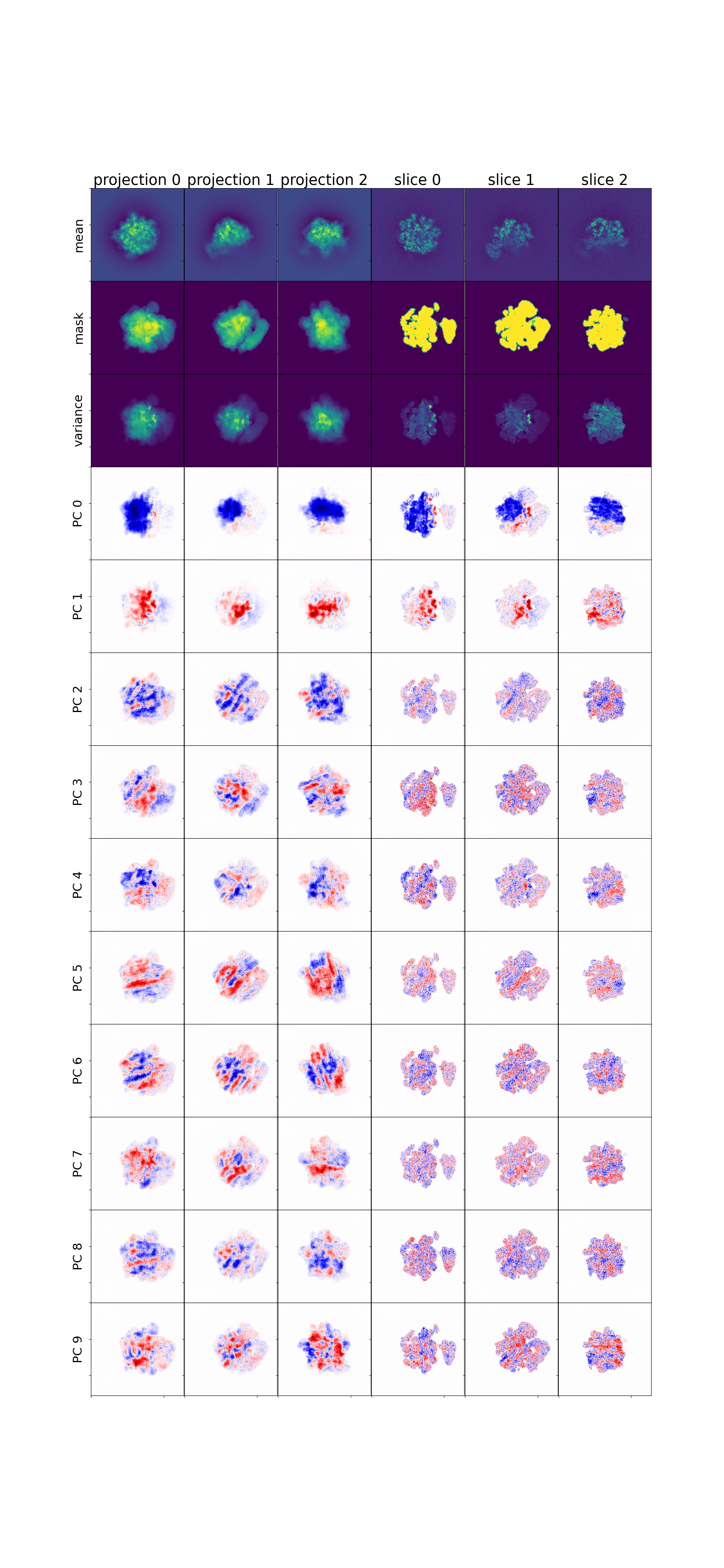

Mean, variance, and eigenvolumes — central slices through the mean volume, variance map, and top eigenvolumes. The mean should show a reasonable reconstruction; the variance highlights flexible regions; eigenvolumes should show structured (not noisy) features.

Step 2: Analyze results

recovar analyze output --zdim=20 --n-clusters=20 --n-trajectories=2

Flag	Purpose
--zdim=20	Use 20-dimensional latent space
--n-clusters=20	K-means with 20 clusters
--n-trajectories=2	2 trajectories between most distant cluster pairs

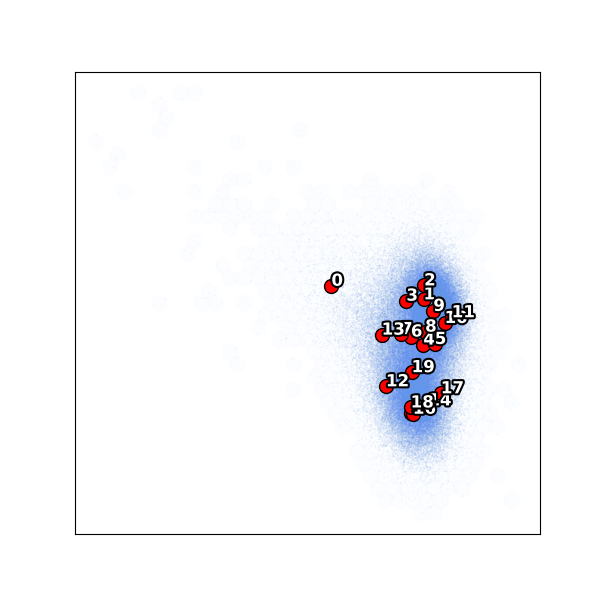

K-means clustering in PC space

Notice cluster 0 is isolated on the left — far from the main body of particles. This is an outlier population (only 1.3% of particles). The remaining clusters 1–19 span the main conformational landscape.

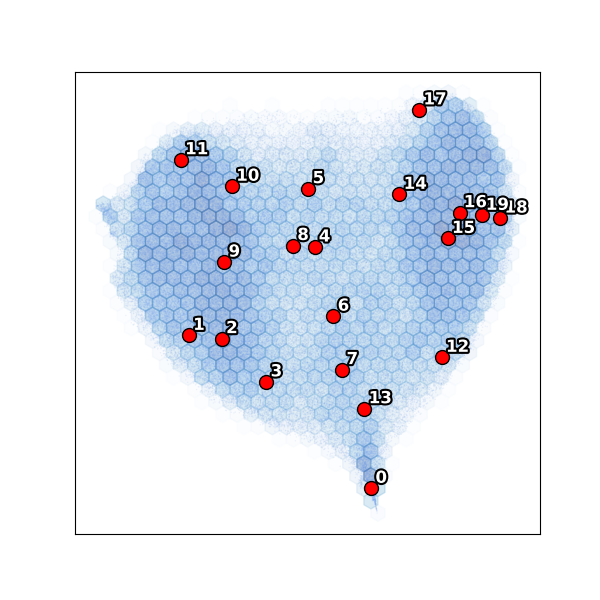

UMAP embedding

The UMAP confirms the PC scatter: cluster 0 forms a separate island while the main body shows a continuous conformational distribution.

Step 3: Extract a clean subset

The isolated cluster 0 represents junk or a distinct species. Exclude it and re-run:

# Exclude cluster 0, keep clusters 1-19
recovar extract_image_subset_from_kmeans \
    output/analysis_20/data/kmeans_result.pkl \
    subset_ind \
    0 -i

The indices are written to subset_ind/indices.pkl.

Step 4: Re-run pipeline on the subset

recovar pipeline particles.256.mrcs \
    --poses poses.pkl --ctf ctf.pkl \
    --mask recovar_masks/mask_10076.mrc \
    --ind subset_ind/indices.pkl \
    -o output_subset

The --ind flag selects only the particles in subset_ind.pkl (~130k of the original 131k).

Step 5: Re-analyze the cleaned subset

recovar analyze output_subset --zdim=20 --n-clusters=20 --n-trajectories=2

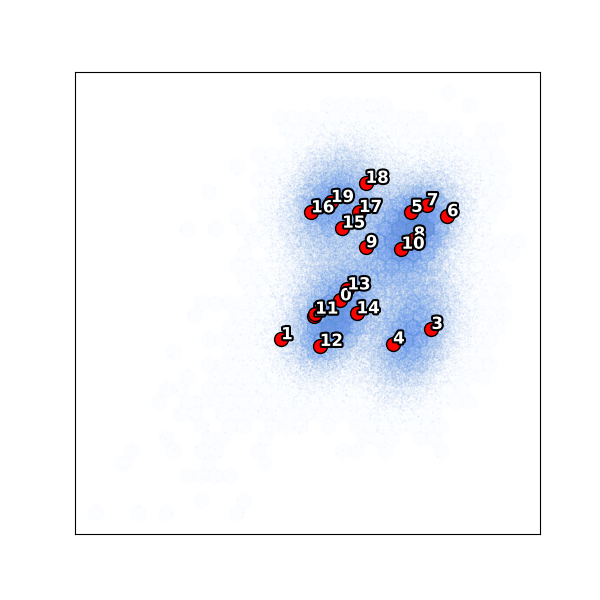

Subset: k-means clustering

With the outlier removed, all 20 clusters now sample the main conformational landscape more evenly.

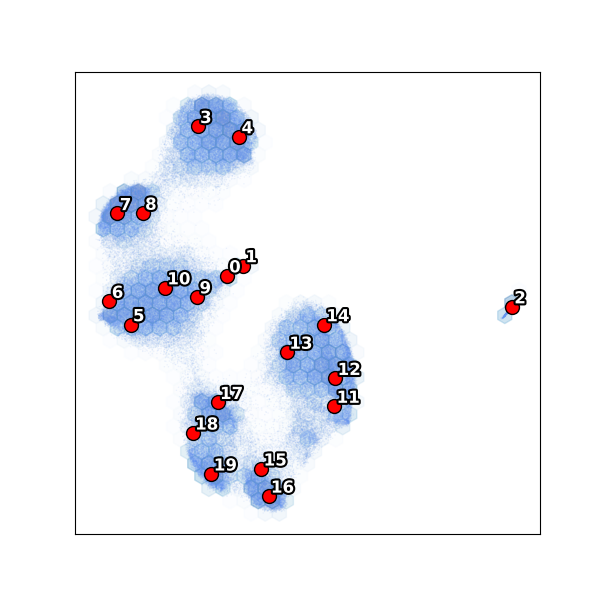

Subset: UMAP

View volumes

# View k-means cluster center volumes (1-indexed, zero-padded)
chimerax output_subset/analysis_20/kmeans/center000.mrc center001.mrc ...

# View a trajectory as a conformational movie
chimerax output_subset/analysis_20/traj000/state000.mrc state001.mrc ...

Interactive exploration with the GUI

Instead of viewing static plots and loading volumes manually, the RECOVAR GUI provides an interactive workflow:

• Latent space explorer — view PCA scatter plots and UMAP embeddings interactively. Click on any point to generate a volume on the fly.
• 3D volume viewer — view isosurface renderings directly in the browser with adjustable threshold. Ctrl+click to overlay multiple volumes.
• Trajectory builder — select two points in the scatter plot to compute a trajectory between them and animate the conformational transition.

See the GUI Guide for full details.

---

EMPIAR-10180: Pre-catalytic Spliceosome

Dataset: Pre-catalytic spliceosome (327,490 particles, 256 x 256 px), with richer conformational heterogeneity. This example demonstrates the full pipeline including conformational density estimation and trajectory computation.

• Reference: Plaschka et al. (2017) Nature 546:617-621

Step 1: Pipeline with filtered particles

recovar pipeline particles.256.mrcs \
    --poses poses.pkl --ctf ctf.pkl \
    --mask full_mask.mrc \
    --focus-mask focus_mask.mrc \
    --correct-contrast \
    --ind filtered.ind.pkl \
    -o output

Flag	Purpose
--mask	Solvent mask covering the entire complex (used for mean reconstruction)
--focus-mask	Focus mask restricting heterogeneity analysis to a flexible subregion
--correct-contrast	Correct per-particle amplitude scaling
--ind	Pre-filtered particle subset (excluding junk from a prior round)

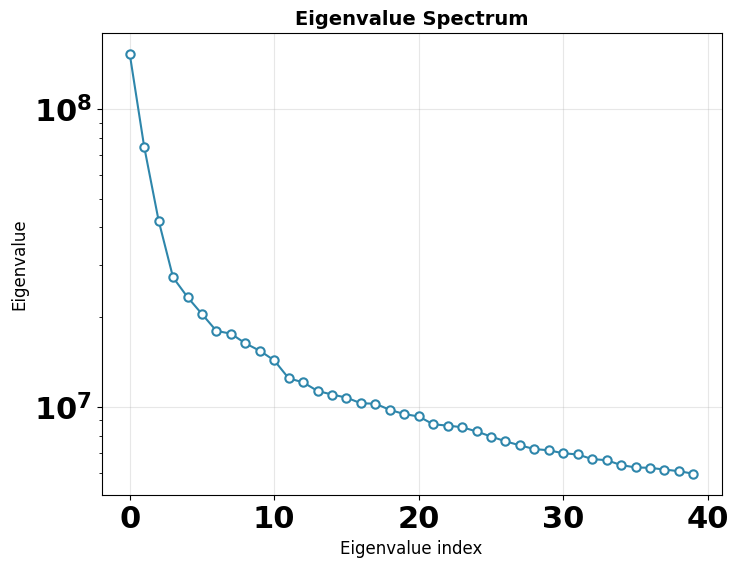

Eigenvalue spectrum

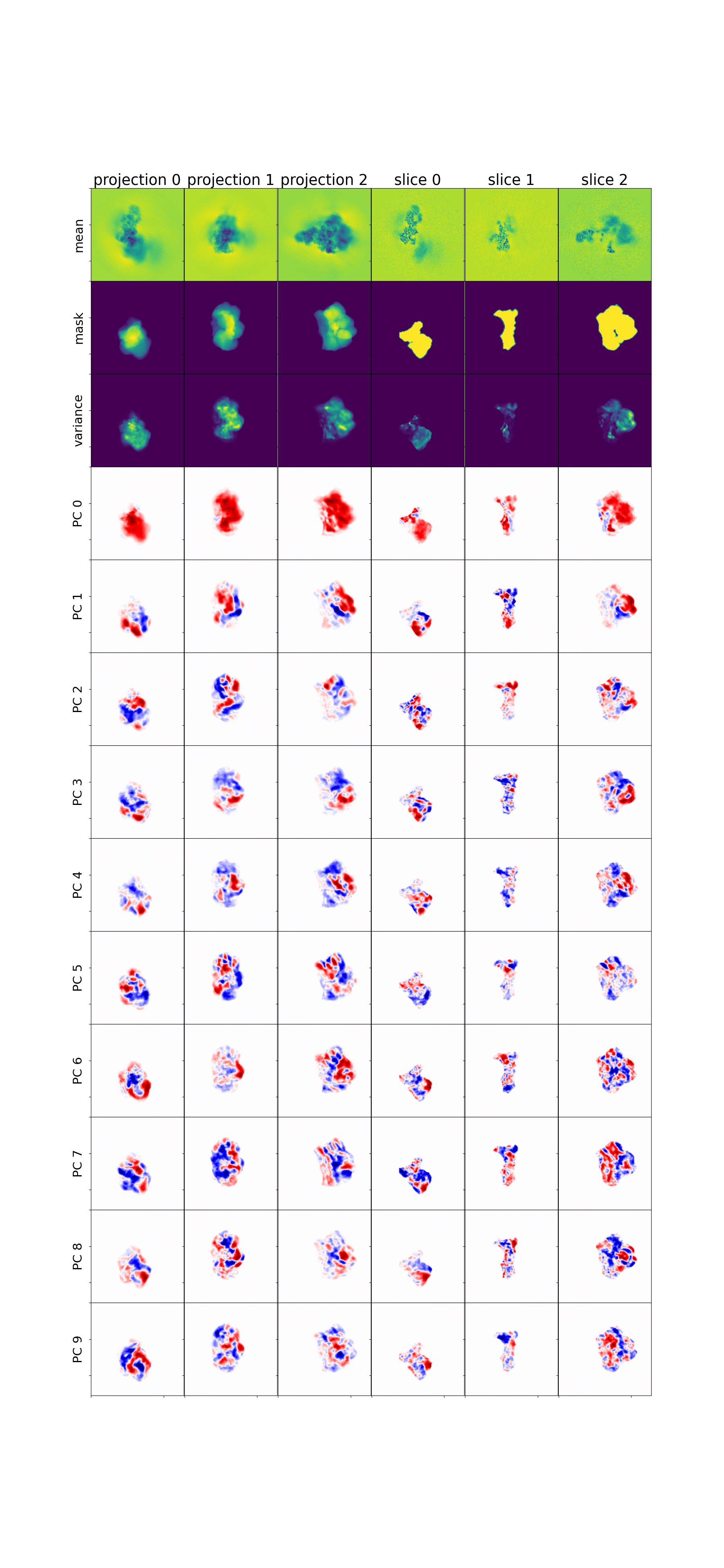

Mean, variance, and eigenvolumes

Step 2: Analyze

recovar analyze output --zdim=4 --n-clusters=20 --n-trajectories=2

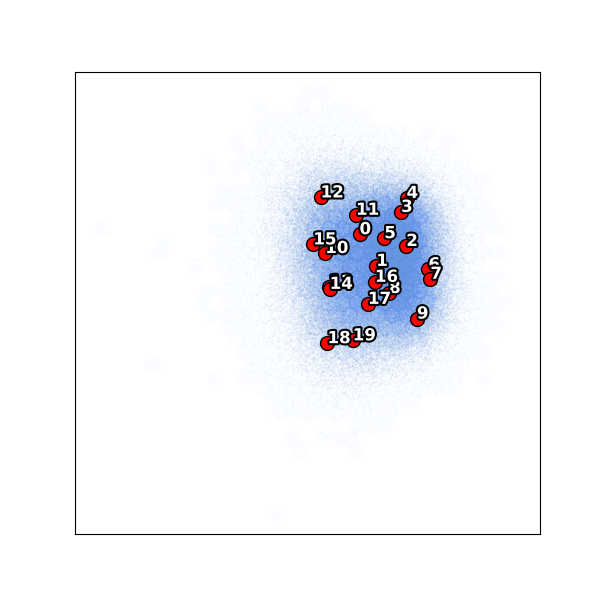

K-means clustering

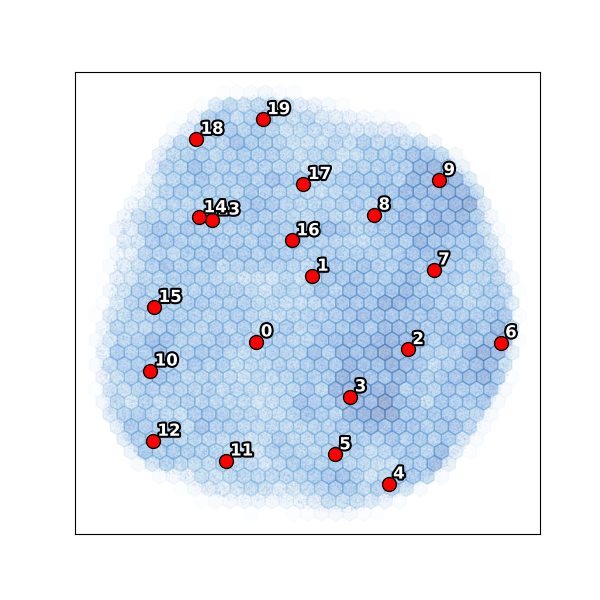

UMAP embedding

Step 3: Estimate conformational density

Conformational density estimation maps the free-energy landscape by deconvolving the particle distribution in latent space.

recovar estimate_conformational_density output \
    --pca_dim=4 --z_dim_used=4

Flag	Purpose
--pca_dim=4	Estimate density in 4D PCA subspace
--z_dim_used=4	Use the 4D latent embedding

This produces density estimates at different regularization levels in output/density/. The data/deconv_density_knee.pkl file uses the recommended "knee" regularization.

Step 4: Compute a trajectory

Using the density landscape, compute a minimum free-energy path between two conformational states:

recovar compute_trajectory output \
    -o output/trajectory_density \
    --zdim=4 \
    --density output/density/data/deconv_density_knee.pkl \
    --endpts output/analysis_4/kmeans/centers.txt \

    --ind 0,19

Flag	Purpose
--density	Deconvolved density for path planning
--endpts	K-means center coordinates file
--ind 0,19	Use centers 0 and 19 as trajectory endpoints

This generates volumes along the minimum free-energy path:

output/trajectory_density/
├── state000.mrc ... state005.mrc   # Volumes along the path
├── state000_half1_unfil.mrc ...    # Half-maps for FSC
├── diagnostics/state000/           # Per-volume diagnostics
└── latent_coords.txt               # Latent coordinates of each state

View the trajectory in ChimeraX:

chimerax output/trajectory_density/state*.mrc

GUI alternative for trajectories

In the GUI's Latent Space Explorer, you can select two points directly on the scatter plot to define trajectory endpoints and compute volumes along the path — no need to look up cluster indices or coordinate files. The volumes appear in the 3D viewer automatically.

---

Using the GUI for analysis

After running pipeline and analyze (either via CLI or the GUI itself), you can launch the GUI to interactively explore results.

Running locally (data and browser on the same machine)

If you are running recovar on your own workstation (i.e. both the data and browser are on the same machine), just launch the GUI:

recovar gui

Then open http://localhost:8080 in your browser.

Running on a remote cluster (typical case)

More commonly, your data lives on a compute cluster and you want to view the GUI in a browser on your laptop/desktop. This requires two steps:

Step 1. Set up an SSH tunnel from your local machine to the cluster. This forwards port 8080 on your laptop to port 8080 on the cluster:

# Run this on your LOCAL machine (laptop/desktop):
ssh -L 8080:localhost:8080 user@cluster

For example, to connect to your HPC cluster:

ssh -L 8080:localhost:8080 user@cluster.example.edu

Step 2. On the cluster (inside the SSH session), launch the GUI:

recovar gui

Now open http://localhost:8080 in your local browser — the SSH tunnel makes it appear as if the server is running locally.

Custom port

If port 8080 is already in use, pick another port (e.g. 8085) and use it consistently in both the SSH tunnel and the GUI launch: ssh -L 8085:localhost:8085 ... and recovar gui --port 8085.

First steps in the GUI

Once the GUI is open, create a project (or open an existing one) and use Scan for Existing Jobs to import your pipeline outputs. The dashboard shows all your jobs at a glance:

The sidebar lists all jobs organized by type with color-coded status indicators. Click any job to view its details, logs, volumes, and plots.

When a pipeline job completes, the job detail page shows quick preview plots and suggested next steps:

Click Analyze this pipeline output to pre-fill an analyze job, or Explore Latent Space to open the interactive latent space explorer.

For full GUI documentation, see the GUI Guide.

---

Output directory reference

Pipeline output

output/
├── job.json                       # Job metadata (version, timing, parameters)
├── command.txt                    # Command that was run
├── run.log                        # Full log
├── README.txt                     # Human-readable output summary
├── model/                         # Internal model
│   ├── params.pkl
│   ├── zdim_4/                    # Per-zdim embeddings
│   │   └── latent_coords.npy
│   └── zdim_10/
│       └── latent_coords.npy
└── output/
    ├── volumes/                   # mean.mrc, half-maps, eigenvolumes, variance maps
    └── plots/                     # Diagnostic plots

Analyze output

output/analysis_<zdim>/
├── job.json                       # Job metadata
├── command.txt, run.log, README.txt
├── plots/                         # All visualization outputs
│   ├── contrast_histogram.png
│   ├── PCA/                       # PC scatter plots with k-means centers
│   ├── umap/                      # UMAP embeddings
│   ├── density/                   # Density plots (if density provided)
│   └── density_sliced/            # Sliced density plots
├── data/                          # Non-volume data files
│   ├── kmeans_result.pkl          # K-means labels and centers
│   └── trajectory_endpoints.pkl
├── kmeans/                        # Cluster center volumes
│   ├── center000.mrc, center001.mrc, ...
│   ├── center000_half1_unfil.mrc  # Half-maps
│   ├── centers.txt                # Center coordinates
│   └── diagnostics/center000/     # Per-volume diagnostics
└── traj000/, traj001/             # Trajectory volumes
    ├── state000.mrc, state001.mrc, ...
    └── diagnostics/state000/      # Per-volume diagnostics

Command reference

Step	Command
Init project	recovar init_project my_project
Run pipeline	recovar pipeline <particles> -o out --mask mask.mrc
Analyze	recovar analyze out --zdim=10 --n-clusters=20
Extract subset	recovar extract_image_subset_from_kmeans data/kmeans_result.pkl subset_dir 0 -i
Re-run on subset	recovar pipeline <particles> -o out2 --ind subset_dir/indices.pkl
Density estimation	recovar estimate_conformational_density out --pca_dim=4
Trajectory	recovar compute_trajectory out -o traj --density density.pkl --endpts centers.txt
Custom volumes	recovar compute_state out -o vols --latent-points coords.txt
Project status	recovar project_status
Launch GUI	recovar gui

Tips

Quick test

Use --only-mean for a fast test that only computes the mean reconstruction:

recovar pipeline particles.star -o test --mask mask.mrc --only-mean

Large datasets (>500k particles)

Use --lazy for lazy loading and --downsample 128 for speed.

Interactive setup

Use recovar gui for a full web interface to set up and run jobs interactively.
